Most shower doors fall within a range of widths and heights that cover the majority of standard openings, giving you plenty of off-the-shelf options. Sliding bypass units for standard alcoves are typically sold as units sized to fit standard alcove widths. The single most important step before you order anything? Grab a tape measure and record your opening width at three heights: top, middle, and bottom. Order to the narrowest of those three numbers.
- Standard single door width: 22–36 inches
- Comfortable everyday width: 30–36 inches
- Common door heights: 72, 74, 76, 78, and 82 inches
- Tub-shower combo door heights: roughly 56–62 inches
- Minimum practical width: 22 inches (sub-22 in is generally impractical)
Pro Tip: If your top, middle, and bottom width measurements differ by more than about 1/4 inch, your walls are out of plumb. That’s the moment to consider framed or semi-frameless hardware — or call a professional installer before ordering.
Table of Contents
- Standard shower door sizes by door type
- How to measure your shower opening correctly
- Minimum vs. recommended opening widths
- Which door type fits your opening size?
- Technical sizing factors that change the final fit
- Custom and off-standard options: when does your opening need a custom door?
- What to expect for timeline and costs
- Key Takeaways
- Why measurement-first is the only approach worth taking
- Glassshowerdirect makes custom sizing straightforward
- Useful sources and further reading
Standard shower door sizes by door type
Knowing the typical size range for each door style helps you figure out whether your opening is a standard fit or a custom job. Here’s how the numbers break down across the most common types.
| Door Type | Typical Unit Width | Typical Walk-In Opening | Common Heights |
|---|---|---|---|
| Hinged / pivot (single) | 22–36 in | Full panel width | 72–82 in |
| Sliding / bypass (alcove) | 48–60 in | ~22–25.375 in | 72–78 in |
| Frameless single panel | 22–36 in | Full panel width | 72–82 in |
| Neo-angle / corner | 22–36 in per panel | 22–36 in | 72–78 in |
| Tub-shower combo door | 22–36 in | Full panel width | 56–62 in |
A few things worth knowing about each type:
- Frameless doors — are available in the same width range as hinged doors but require more precise wall conditions. Heights of 72, 74, 76, 78, and 82 inches are all commonly offered, with taller options giving a more open, spa-like feel.
How to measure your shower opening correctly
Measuring sounds simple, but this is where most ordering mistakes happen. Walls that look straight often aren’t, and a door ordered to the wrong dimension means delays, return shipping, and a bathroom out of commission longer than planned.
Step 1: Measure width at three heights
Hold your tape measure at the top of the opening, the middle, and the bottom. Write down all three numbers. Order to the narrowest measurement — that’s the tightest point the door must clear.

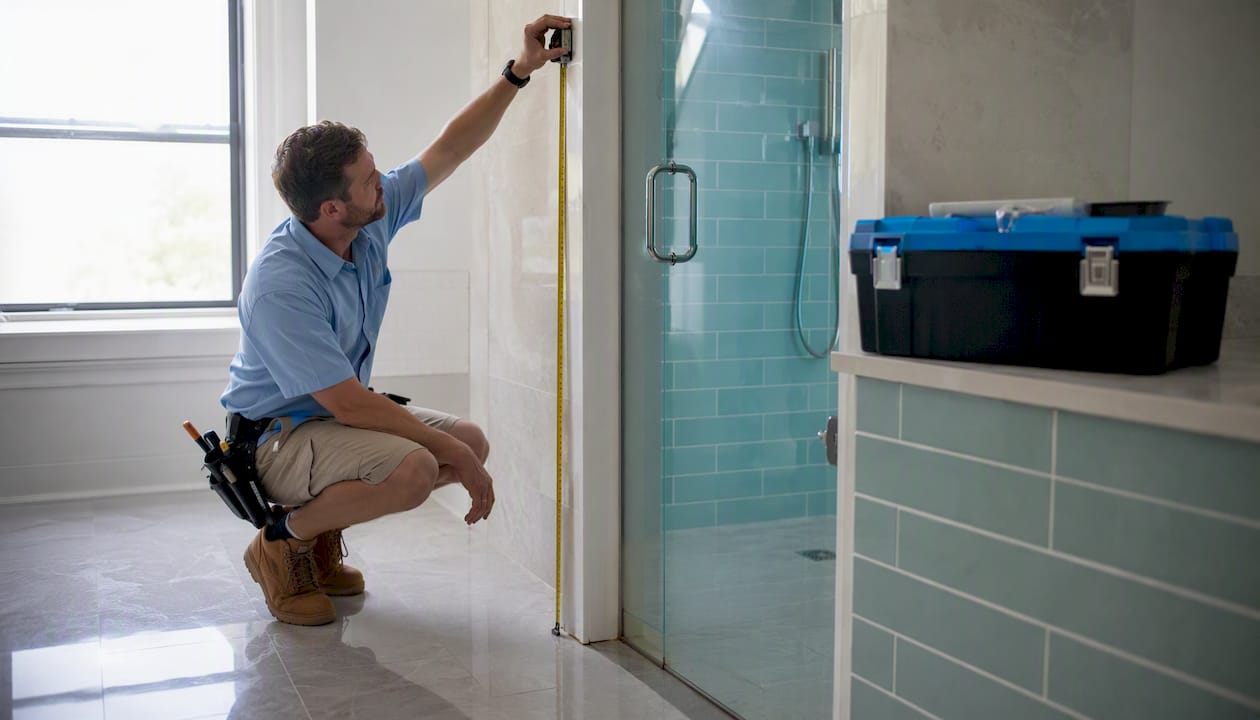

Step 2: Measure height
Measure from the finished floor (or the top of the tub ledge for a tub-shower combo) up to where the door will end. If you’re installing on a curb, measure from the top of the curb, not the floor. Record both the left-side and right-side heights, since floors and curbs aren’t always perfectly level.

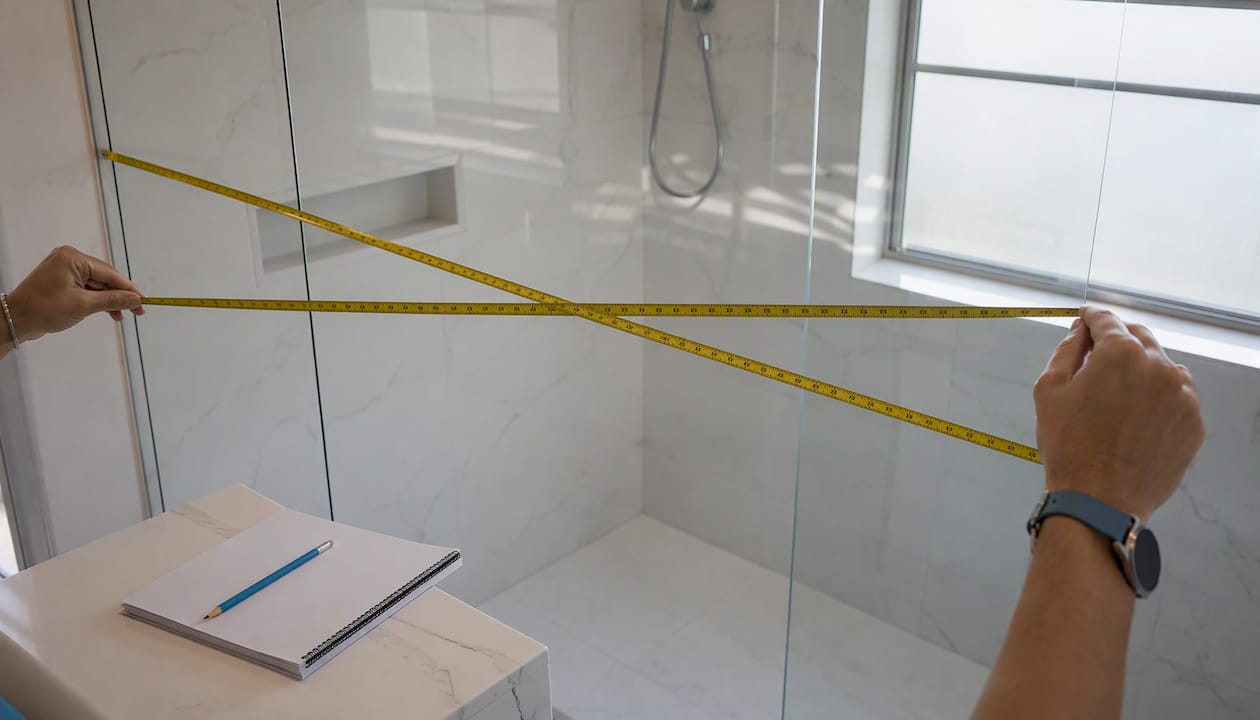

Step 3: Check for square
Measure diagonally from corner to corner in both directions. If those two diagonal measurements match, the opening is square. If they differ, your walls are out of plumb — a detail that matters a lot when ordering frameless glass.
Here’s a quick reference for what to record:
| Measurement | Where to Take It | Why It Matters |
|---|---|---|
| Width (top) | At the top of the opening | Catches wall lean at ceiling height |
| Width (middle) | At mid-height | Often the most accurate single reading |
| Width (bottom) | At the floor or curb level | Catches base lean or curb irregularity |
| Height (left) | Floor/curb to top, left side | Confirms level installation height |
| Height (right) | Floor/curb to top, right side | Catches sloped floors or uneven curbs |
| Diagonal A | Top-left to bottom-right | Checks for square |
| Diagonal B | Top-right to bottom-left | Confirms square when matched to A |
For tiled walls, measure to the finished tile surface, not the substrate. The tile is what the door hardware will actually contact. For alcove installations, measure wall-to-wall at the tile face.
Pro Tip: Professionals always measure at multiple points and use the narrowest reading when ordering. If you’re measuring a tiled alcove, also note whether the tile is flush or has a protruding bullnose edge — that edge can reduce your usable opening by up to 1/2 inch per side.
Minimum vs. recommended opening widths
The commonly cited minimum for a shower door opening is 22 inches. Below that, you’re looking at a space that feels like showering in a closet — and some building standards won’t accept it either.
That said, 22 inches is a floor, not a goal. A 24-inch opening is technically workable, but it’s tight for most adults. The comfortable practical range is 30–36 inches, which gives you room to step in and out without turning sideways and leaves space for a towel grab on the way out.
For accessibility, the ADA Standards for Accessible Design call for a minimum 36-inch clear floor space at shower entries in accessible units. While residential bathrooms aren’t always subject to ADA requirements, those numbers reflect what actually works comfortably for a wide range of users — including older family members or anyone with limited mobility.
For hinged and pivot doors, the door swing itself needs clearance outside the shower. A 30-inch door swings out 30 inches into the bathroom floor space. If a toilet or vanity sits close, that swing path becomes a real constraint — and a sliding door or a pivot with a 180-degree swing might be the smarter call.
Pro Tip: For narrow openings under 28 inches, a sliding bypass door or a neo-angle corner configuration often solves the problem without a custom order. Both styles avoid the swing-clearance issue entirely and can fit openings that a hinged door simply can’t serve well.
Which door type fits your opening size?
Once you have your measurements, matching them to the right door style is mostly a process of elimination. Here’s a practical way to think about it.
- 22–28 inches wide: A single hinged or pivot door works, but comfort is limited. Sliding doors are worth considering if the alcove allows it, and neo-angle configurations can open up a corner space that feels cramped with a swing door.
- 28–36 inches wide: This is the sweet spot for single hinged and pivot doors. You get a full, comfortable entry, a clean look, and plenty of frameless glass options. Frameless shower ideas for small bathrooms often land in this range.
- 48–60 inches wide (alcove): Sliding bypass doors are the standard answer here. The 60-inch alcove is the most common tub-shower footprint in U.S. homes, and bypass units are sized specifically for it. Just remember the walk-in opening is smaller than the unit width.
- Corner footprints: Neo-angle enclosures use two angled panels to create an entry in a corner space. They’re a practical choice when neither wall is long enough for a standard alcove setup.
A few layout constraints worth checking before you commit to a type:
- Door swing path: Measure from the door’s hinge point to the nearest fixture. A toilet 24 inches from the hinge will get hit by a 30-inch door.
- Towel bar placement: Some frameless doors mount towel bars directly on the glass. Plan for that before you tile or add wall hooks.
- Adjacent fixtures: Vanities, radiators, and freestanding tubs all affect which direction a door can swing. For choosing the best bathroom doors in a tight layout, clearance is the first filter.
Technical sizing factors that change the final fit
Ordering a door to your measured opening width isn’t quite the whole story. Glass thickness, hardware offsets, and bottom gaps all affect how the finished door actually fits.
Glass thickness and span
Frameless doors use thicker glass than framed ones because the glass itself carries the structural load. Common practice is 3/8-inch glass for moderate widths and 1/2-inch glass for wider spans. Thicker glass is heavier, which means heavier hinges and more precise wall anchoring.
| Glass Thickness | Typical Application | Notes |
|---|---|---|
| 3/8 inch | Single doors up to ~36 in wide | Standard frameless weight; most common |
| 1/2 inch | Wider panels, large frameless enclosures | Heavier; requires heavy-duty hardware |
| 1/4 inch | Framed and semi-frameless doors | Frame carries the load; glass is thinner |
Hardware offsets and hinge adjustments
Hinges, U-channels, and wall jambs all take up space. A wall jamb on a framed door might add 1/2 to 3/4 inch per side to the installed width. When you’re measuring, you’re measuring the raw opening — the hardware will reduce the usable glass width slightly. Manufacturers publish these offset specs in their installation guides, so check them before finalizing your order dimensions.
Bottom gap
A small gap between the bottom of the glass and the shower curb or floor is completely normal. That gap allows the door to swing freely and prevents the seal from binding, which would cause premature wear. The exact gap depends on the hardware and whether you have a curb, a zero-threshold entry, or a tub ledge. Most installations use a sweep or seal strip to cover the gap and direct water back into the shower.
A bottom gap of roughly 1/4 to 3/8 inch is typical for most frameless installations. If you have a sloped shower floor for drainage, measure the height at the highest point of the curb to avoid the door dragging.
Custom and off-standard options: when does your opening need a custom door?
Not every shower opening is a tidy rectangle with plumb walls. Older homes especially tend to have walls that have shifted, floors that have settled, and openings that don’t match any standard catalog size. That’s where custom frameless doors earn their place.
Custom frameless glass can be fabricated to nearly any width and height, accommodating irregular openings, angled walls, and unusual heights. Non-standard openings are a practical problem that custom glass specialists solve regularly, and many offer measuring services as part of the process.
When does your opening cross into custom territory?
- Width outside the 22–36 inch standard range for single doors
- Height above 82 inches or below 72 inches
- Diagonal measurements that differ by more than 1/4 inch (out-of-square opening)
- Angled walls, sloped ceilings, or non-rectangular footprints
- Steam enclosures, which require fully sealed glass and specific hardware
If your walls are out of plumb by more than about 1/4 inch, frameless glass will visibly show the gap or lean. Semi-frameless and framed glass showers have adjustment ranges built into the frame that hide small irregularities — a real practical advantage for older homes.
Ordering checklist for a custom door:
- Narrowest width measurement (top, middle, bottom)
- Left and right height measurements
- Both diagonal measurements
- Curb height (if applicable)
- Glass thickness preference (3/8 or 1/2 inch)
- Hardware finish (brushed nickel, matte black, chrome, etc.)
- Hinge type and swing direction
- Easy-clean coating preference
- Any obstructions: niches, soap dishes, grab bars near the opening
Pro Tip: For steam units, out-of-square openings, or any structural changes to the shower walls, hire a professional measurer before ordering. A templating visit — where a pro traces the exact opening shape — eliminates guesswork entirely and is often available through your glass supplier.
What to expect for timeline and costs
Planning a shower door project means budgeting both time and money. Here’s a realistic picture of what each phase typically involves.
Timeline
- Site measuring: Same day to a few days, depending on whether you measure yourself or schedule a professional visit.
- Manufacturing lead time: For custom frameless doors, expect roughly 1–3 weeks from order confirmation to shipping, depending on glass options, hardware, and current production schedules.
- Installation: Most standard installs take one day. Complex enclosures with multiple panels or steam sealing may take longer.
Cost ranges
Costs vary widely by door type, glass thickness, hardware finish, and whether you hire an installer. As general ballpark ranges:
- Basic framed shower doors: lower end of the market, often a few hundred dollars for the unit
- Semi-frameless options: mid-range, with more hardware and glass variation
- Custom frameless enclosures: higher investment, reflecting precision fabrication and premium hardware
Additional factors that affect the final price: extra panels or sidelights for wide openings, upgrading from 3/8-inch to 1/2-inch glass, specialty easy-clean coatings, premium hardware finishes like matte black or unlacquered brass, and any structural work needed to level or reinforce the shower walls before installation.
Key Takeaways
Measure your shower opening at three heights, order to the narrowest measurement, and choose your door type based on that width and your bathroom’s available swing clearance.
| Point | Details |
|---|---|
| Measure three widths | Record width at top, middle, and bottom; always order to the narrowest of the three. |
| Standard size ranges | Single doors fit 22–36 in wide openings; sliding bypass units cover 48–60 in alcoves at 72–78 in tall. |
| Out-of-square rule | If diagonal measurements differ by more than 1/4 in, choose framed or semi-frameless over frameless. |
| Custom frameless for odd openings | Non-standard widths, heights, or angled walls are best handled with a custom frameless order. |
| Glassshowerdirect online builder | Use Glassshowerdirect’s online design tool to configure a custom frameless door to your exact measurements. |
Why measurement-first is the only approach worth taking
Most shower door headaches trace back to one moment: someone ordered before they measured carefully. The door arrives, it’s 1/2 inch too wide for the tightest point of the opening, and suddenly a one-day install turns into a two-week delay waiting for a replacement.
The conventional advice is to “measure twice, cut once.” That’s fine as far as it goes, but it misses the part that actually trips people up: measuring in the right places. Most homeowners measure once, at eye level, and assume the opening is consistent top to bottom. It rarely is, especially in homes more than 20 years old. Walls shift. Tile adds thickness unevenly. Curbs settle at slight angles.
The smarter approach is to treat the measurement phase as the most important part of the project, not a quick preliminary step. Record all seven numbers from the checklist above. Note your diagonal measurements. If anything looks off by more than 1/4 inch, pause before ordering and decide whether frameless glass is really the right call for your walls. Frameless looks stunning when the walls are plumb. When they’re not, a frameless vs. framed comparison will show you quickly why the frame exists.
Custom frameless doors are genuinely worth the investment for non-standard openings. The idea that custom means complicated or expensive has faded as direct-to-consumer models have made factory-direct ordering practical for homeowners. You don’t need a contractor as an intermediary to get a door fabricated to your exact dimensions. You need accurate measurements and a clear ordering process.
Glassshowerdirect makes custom sizing straightforward
Factory-direct pricing on custom frameless glass is the concrete advantage Glassshowerdirect offers over buying through a showroom or waiting on a contractor’s markup. You configure the door to your exact measurements, choose your hardware finish, select your glass type, and add an easy-clean coating if you want one — all through an online builder that walks you through each decision.
For openings that fall outside standard catalog sizes, the custom frameless glass shower doors option handles irregular widths, unusual heights, and non-rectangular footprints. If you’re ready to browse finished enclosure styles first, the best frameless glass shower enclosures page shows the full range of configurations. And if you want to see the installation process before committing, the how-to installation video walks through a typical frameless door install step by step.
Have your seven measurements ready, and the online builder will do the rest.
